The WFCO WF-9800-AD Series of Converters now includes an industry first – patent pending Auto-Detect technology. This new microprocessor-driven technology will recognize lithium ion and lead acid battery chemistries and automatically adjust the charging profile to match the battery type. No more buttons. No more switches. RV owners will have peace of mind that their batteries will be accurately charged, eliminating the risk of over and under charging. Additionally, with multi-stage charging and current monitoring in both lead acid and lithium profiles, battery life will be maximized.

The WF-9800-AD Series is designed with optimized charging for battery chemistry in the unit. For Lead Acid Batteries, WFCO's automatic three-stage converter handles every charging need for the RV while extending the battery's life. For Lithium-Ion Batteries, the multi-stage process ensures a safe operating voltage for all loads, replaces energy back into the battery, and assures the lithium cells inside the battery remain balanced.

Exclusive WFCO Technology
• Patent pending technology
• Lead Acid/AGM and LiFEP04 compatible
• Detects battery chemistry, automatically changes and optimizes charging profile
• Innovative processor system that controls charging based on the need of the battery
• Improved fan control for better cooling and efficiency
• Continuous monitoring provides superior performance and battery maintenance

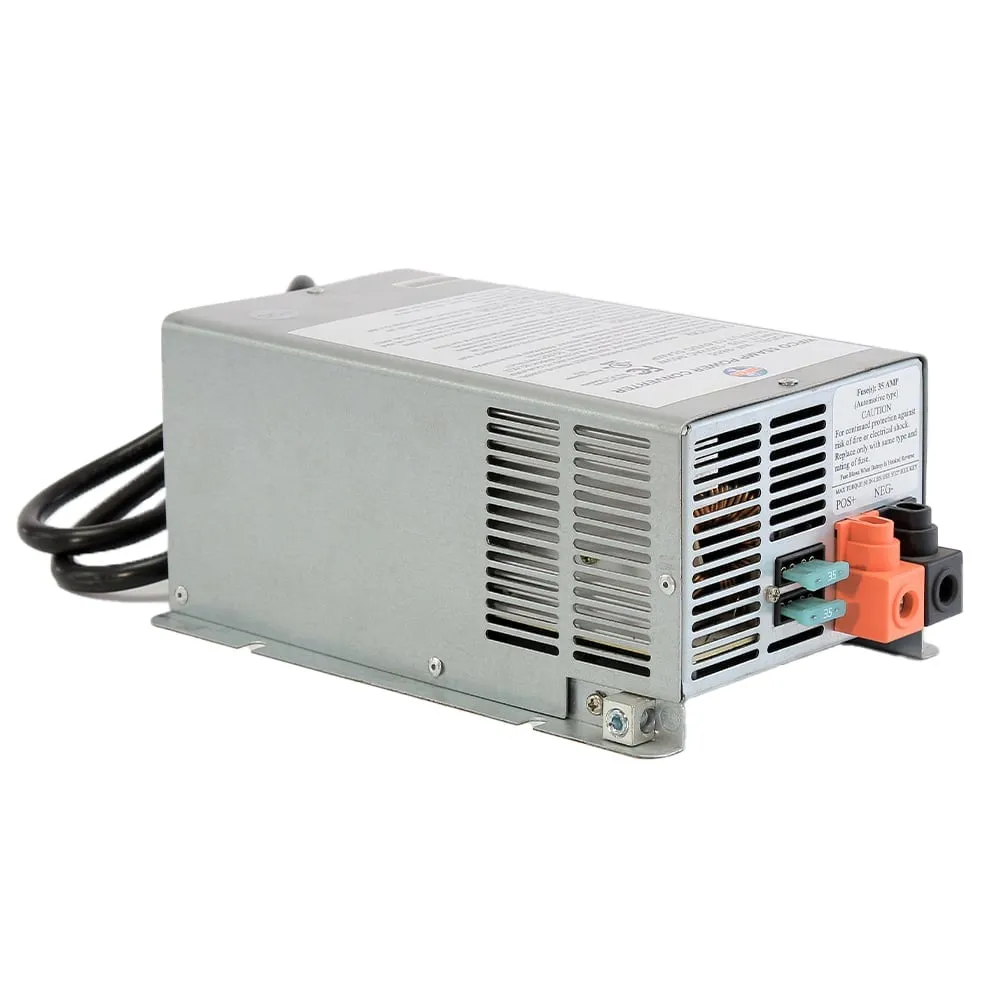

WF-9855-AD Converter
The WF-9855-AD model provides 55 amps of clean, reliable DC power, which is ideal for powering electronics and appliances. Quiet operation is assured as the cooling fan runs only when needed. Another advantage is FCC Class B compliance which means that the converter is designed not to cause interference with televisions, radios, or other signals. Automatic three-stage battery charging maintains your battery's life with three nominal voltage output modes: 13.2 VDC "float" mode, 13.6 VDC "absorption" mode, and a 14.4 VDC "bulk" charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.

Model WF-9855-AD Specifications
Power Input: 940W
Input Voltage: 105 VAC - 130 VAC / 60 Hz
Output Current: 55A
Converter Type (Lead Acid/Lithium): 3-Stage Converter Charger / 2-Stage Converter Charger
Normal Mode Output: 13.6 VDC
Trickle Charge Mode Output (LA/LI): 13.2 VDC
Bulk Charge Mode Output (LA/LI): 14.4 VDC / 14.6 VDC
Outer Dimensions: 4.75"W x 4"H x 8.75"D
Weight: 5.5 lbs.
Certifications: UL and cUL listed and FCC Class B compliant
Safety Features/Protections: Over Current, Over Temp, Over Voltage, Reverse Polarity WFCO WF-9855-AD Auto-Detect Power Converter, 55A Output
